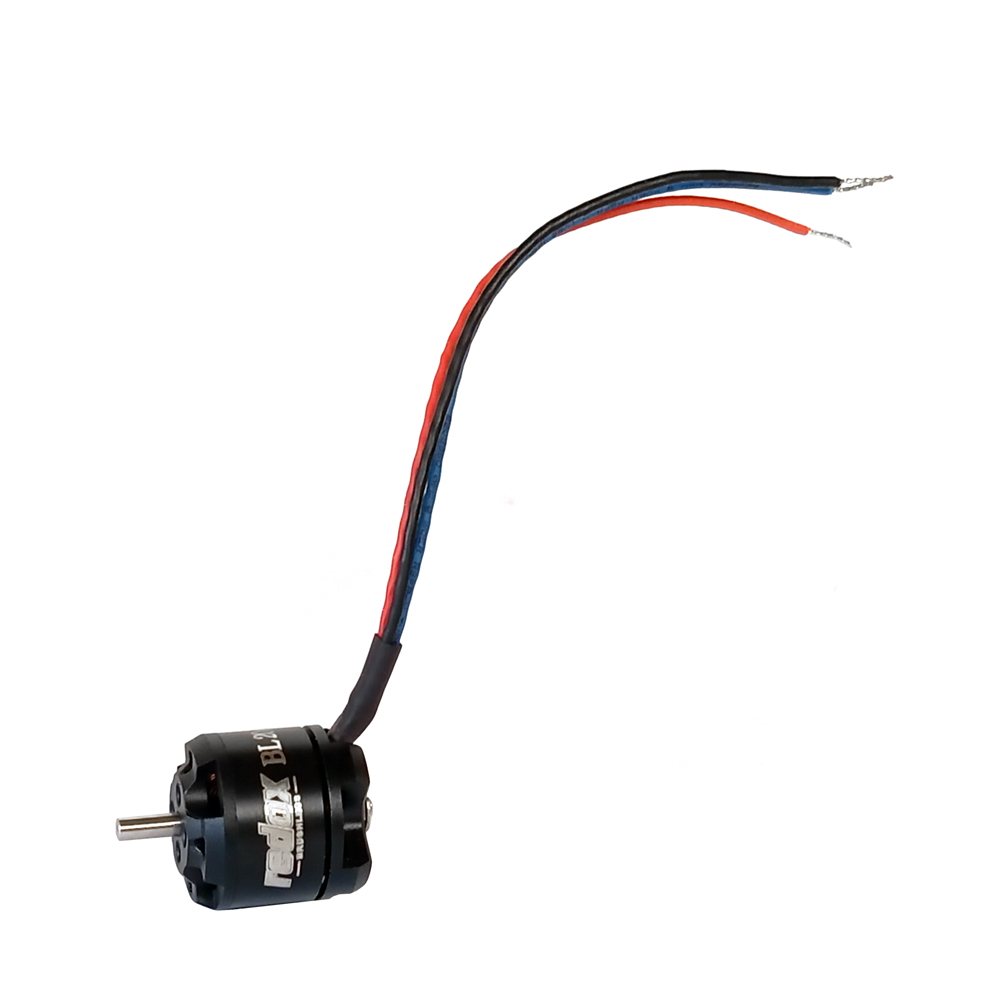

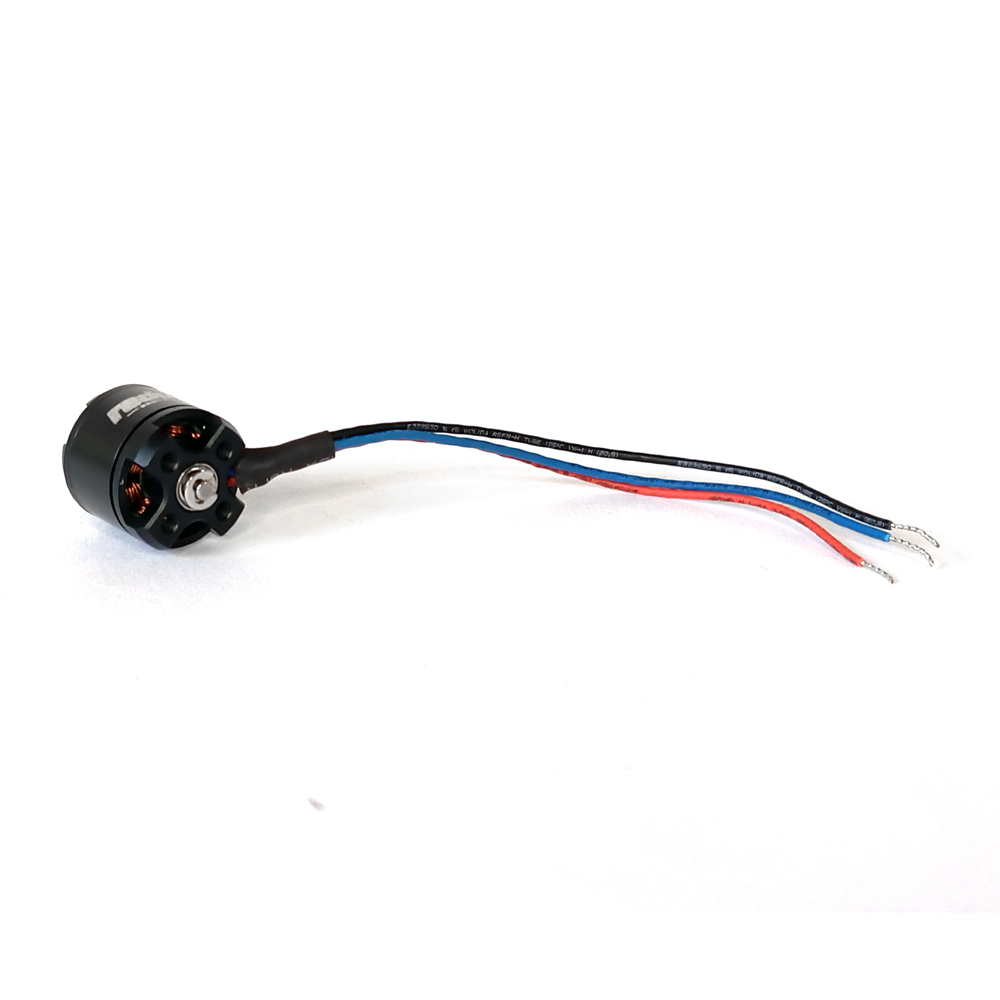

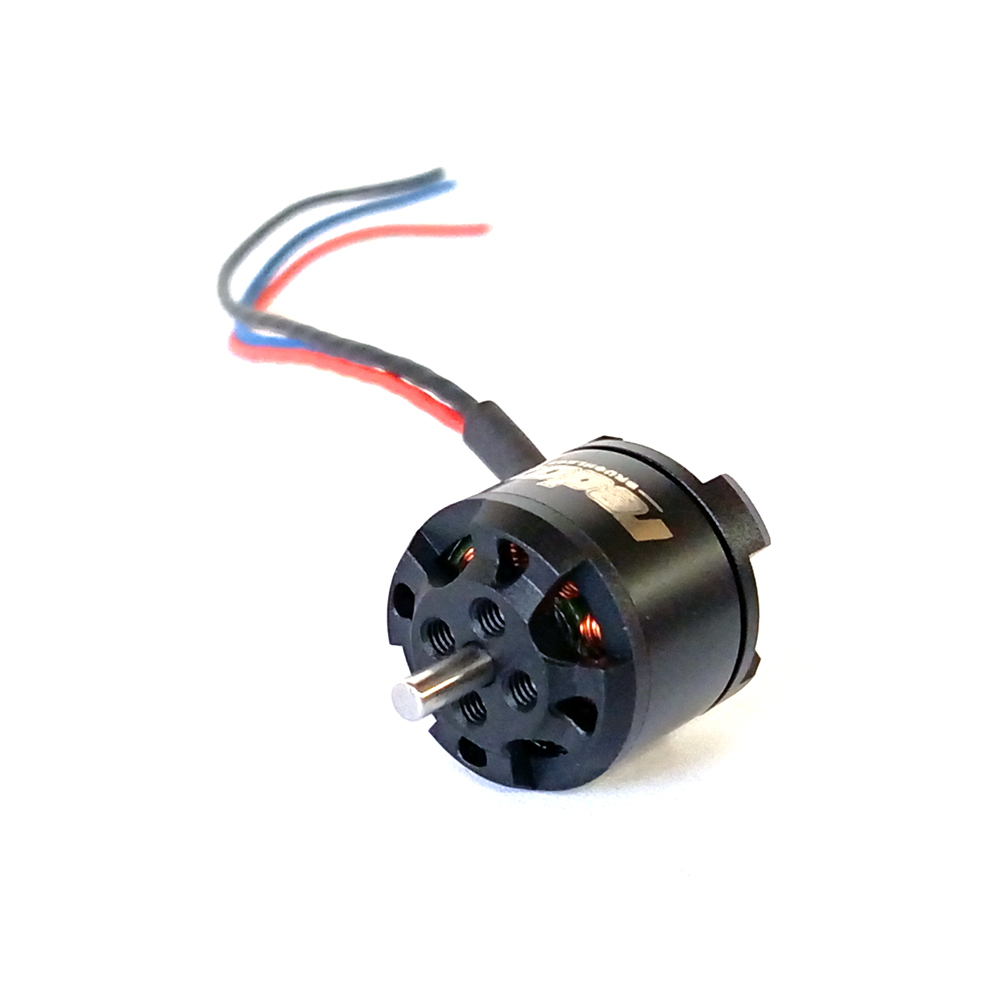

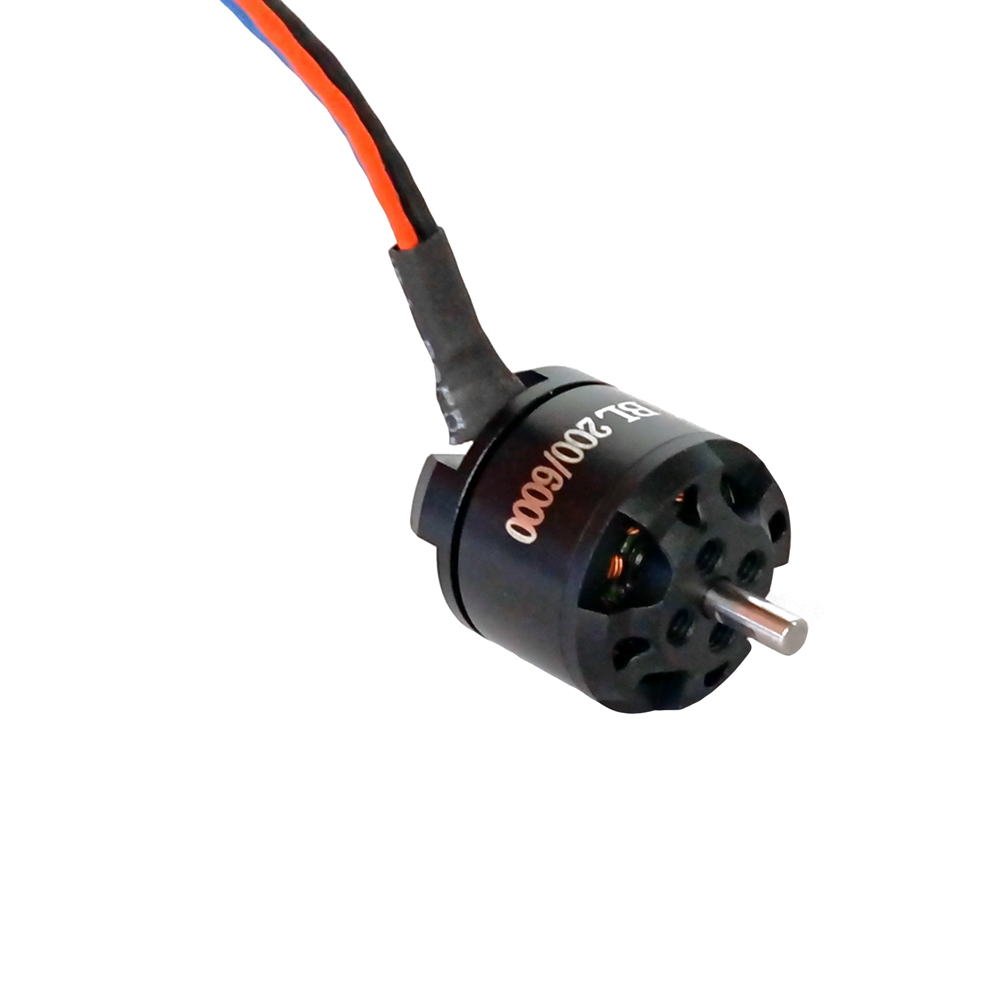

Redox 200/6000 Miniature Brushless Motor

The miniature Redox 200/6000 motor is designed for the smallest remote-controlled aircraft models. Measuring just 14.4mm in diameter and 15mm in length, this 7-gram motor is perfect for all types of foam and wooden miniature models.

Since custom-designed models often use individually selected connectors and mounting methods, the motor does not come with connectors, but rather with leads prepared for soldering.

Set includes:

Redox 200/6000 brushless motor

Operating Parameters:

Power: 65 W

Static Thrust: 120 g

Shaft Diameter: 2mm

kV [RPM/V]: 6000

Operating Voltage: 2s (7.4V)

No-load Current: 0.2 A

Recommended ESC: 10 A

Weight: 7 g

Motor Diameter: 14.4mm

Body Length: 15mm
