Brushless Motor Viper 1520 13T 4-Pol 3330KV 650W
Brushless Motor Viper 1520 4-Pol
Features
- CNC machined AL heat sink casing
- Efficiency 4-Pole 6 Slots brushless motor
- High purity copper windings making maximizes conductivity
- Powerful sintered neodymium magnet
- High torque and light weight
Details
| Poles | 4 |
| Power | 650 W |
| Length | 38,0 mm |
| Ø cage | 29,0 mm |
| Ø shaft | 4 mm |
| Length shaft | 14 mm |
| Weight | 105,0 g |
| Skrews | 4 x M3 |
| Hole pattern | 19,0 mm |
| max. temperature of neodym | 180 °C |
| Max. RPM | 65.000 |
| Recomende timing | 8 - 10 |
Pictures

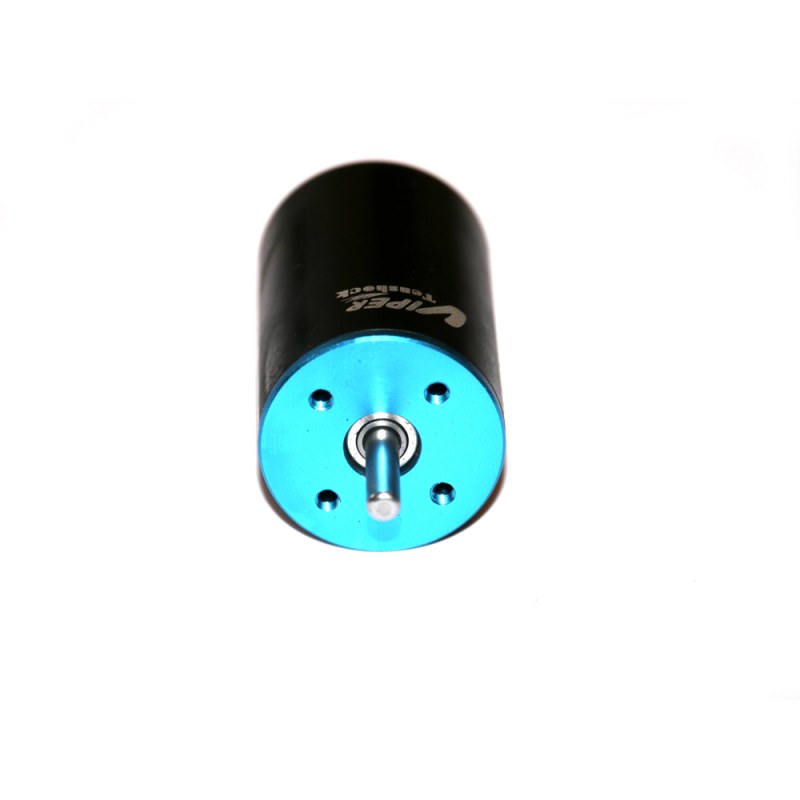

VZ1520-1

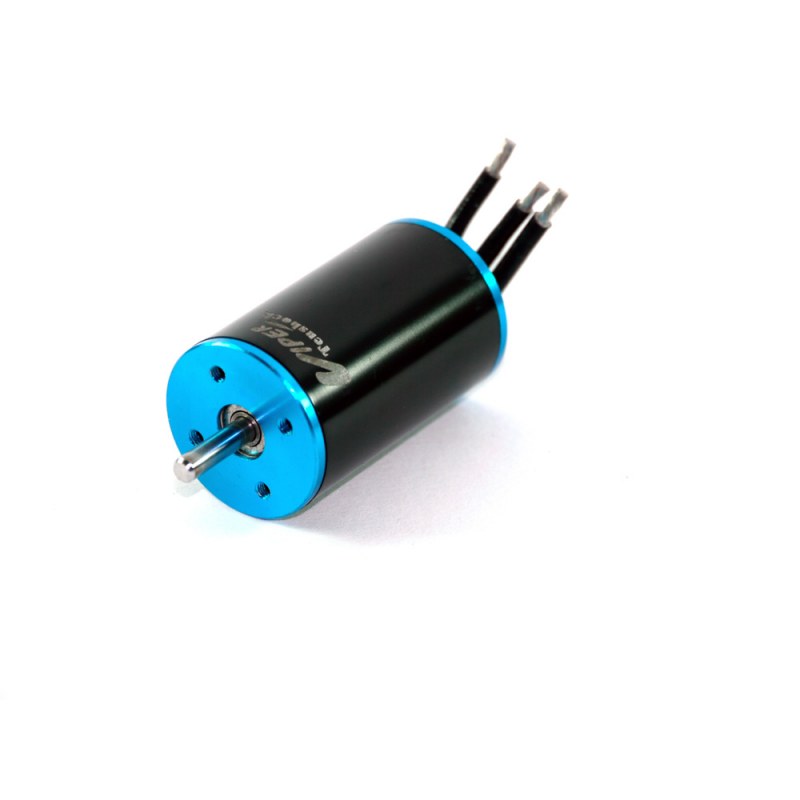

VZ1520-2
