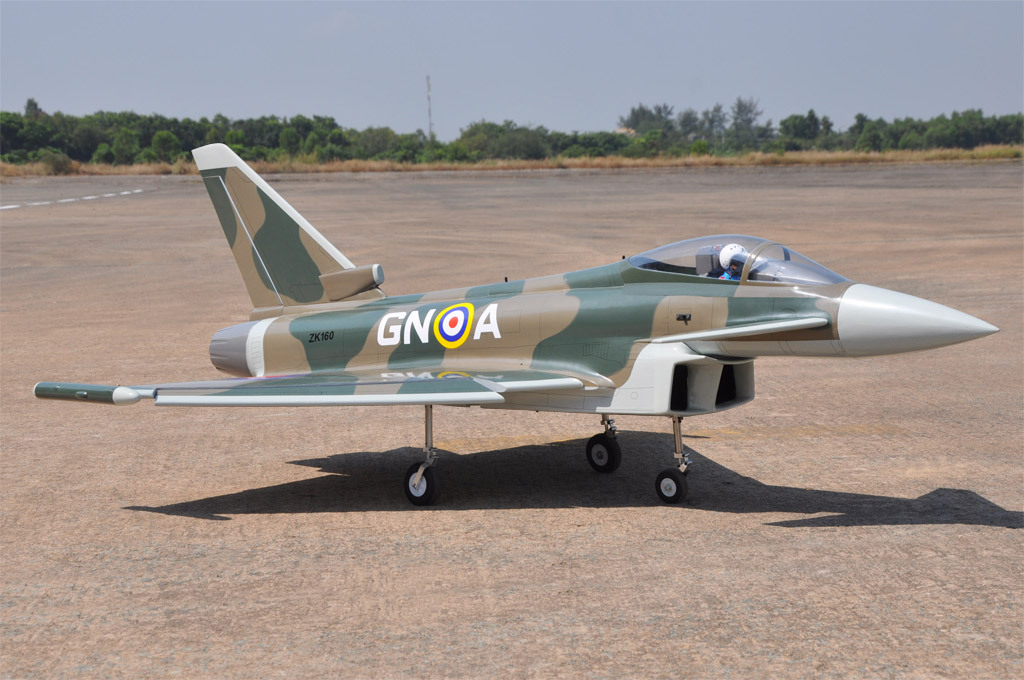

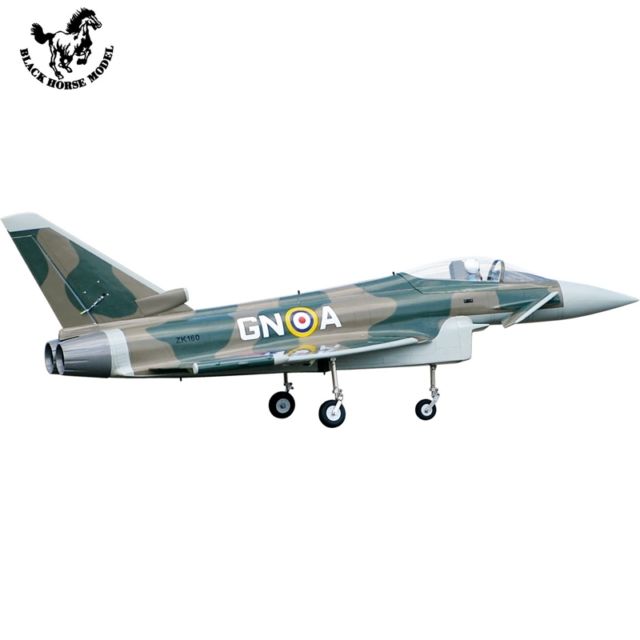

The Eurofighter is a twin-engine, canard-delta wing multirole aircraft used by many air forces including the RAF,
German Air Force, Italian Air Force and Spanish Air Force it has become a key tool in Europe’s airborne arsenal.
The structure is built from CNC cut balsa and ply all aligned by hand on jigs for accuracy.
This traditional method results in a lightweight and strong airframe ideally suited to EDF fans.

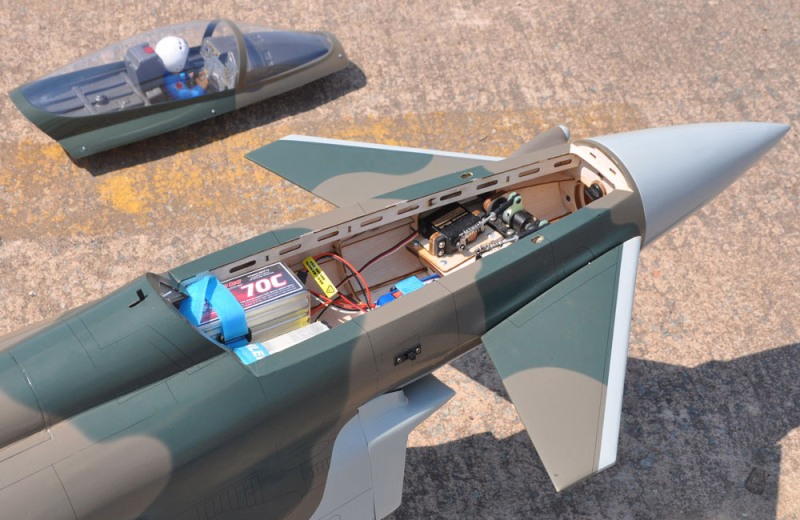

There are 4 large hatches for easy access to the onboard electronics during assembly or maintenance.
This kit also comes supplied with CNC metal oleo struts ready for your electric retracts (F-RMXER040M and F-RMXER040N are ideal).
Using a large 120mm EDF combined with a large 12S Li-Po this jet is no slouch and really rips through the sky.
The powerful control make aerobatics easy and provide impressive authority in a wide range of flight speeds.
When it comes time to land thanks to the large wing area she also excels at slower speed giving gentle handling on approach.
Finished in the beautiful ‘Battle of Britain’ anniversary scheme this is a real conversation starter at any local flying club.
EF -2000 Typhoon
Item code: BH165.
- Wingspan: 1,238 mm (48.75 in).
- Length: 1,650 mm (64.96 in).
- Weight: 7.2 – 7.4kg (15.84-16.28 lbs).
- Wing area: 63.2dm2.
- Wing loading:114g/dm2.
- Wing type: Boeing 707.54 Span.
- Gear type: Electric retract gear, size: (92.2 x 51 x 30.6)mm (not included).
CNC Suspension Metal Struts (included).
Parts listing required (not included):
- Radio: 9 channels.
- Servo: 8 standard high torque servos, size: (33 x 17)mm.
+ 2 servos (Futaba BLS 352), size: (39.9 x 20.1 x 37.1)mm canard.
- Engine: EDF 120mm.
- Battery: 12S LIPO – 44.4 V.
- ESC: 160A.
Recommended EDF and Battery set up (not included):
- Engine: Ducted Fan EDF JETFAN-120 eco Ejets+ HET 800-68-685.
Battery: 12S LIPO – 44.4 V ≥ 6000Amh 40C.
- Or Engine: Ducted Fan EDF Schubeler DS-86-AXI HDS 120mm + TP 5660-9D motor.
Battery: 10 – 12S LIPO – 37 – 44.4 V ≥ 6000Amh 40C.
- ESC: 160A Phoenix Castle.
NOT INCLUDING ELECTRIC RETRACT GEAR.
ONLY INCLUDING CNC SUSPENSION METAL STRUTS.
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED
Manual (a-bh165.pdf, 5,560 Kb) [Download]
