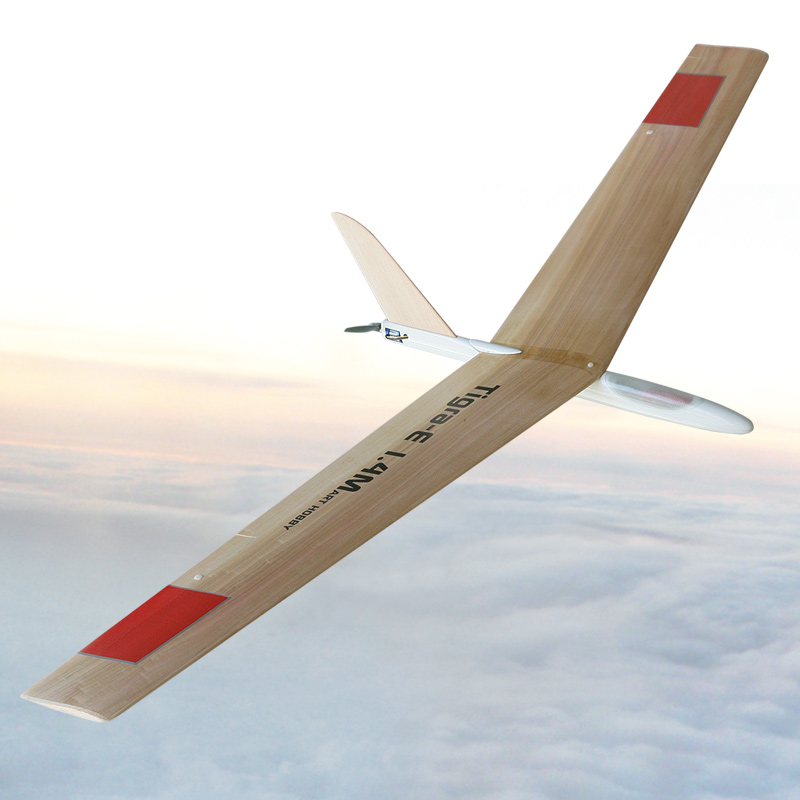

Kit Tigra-E 1.4M Flying Wing was specially engineered for hand launch and slope enthusiasts. It's light flying mass and composite fuselage with vertical stabilizer makes it very rugged. The JK3780 modified self-stabilizing airfoil was specially developed to allow superb air penetration, very wide range of speed and excellent handling. Due to its aerodynamic efficiency when sling launched Tigra reaches very high altitudes allowing easy thermal catching and long glide time. Due to its toughness, good handling characteristics and wide range of speed Tigra is also an excellent slope glider.
model components, all necessary hardware, drawing and step by step instructions.
- Tigra-E 1.4M
- motor ART-400 + mount
- spinner 12mm (3.17)
- APC prop 5.5x4.5EP
Wing span 1420 mm / 55.9 in.
Length 635 mm / 25 in.
Glider weight 250 g / 8.7 oz.
Wing area 23.7 dm² / 367.3 sq.in.
Wing airfoil JK3780-modified
Radio 4+CH. or more
Receiver 4+CH. or more
Alevons servos 2 ea. HS-45HB; HS-65HB or similar
Battery 800 mAh 2S LiPo
