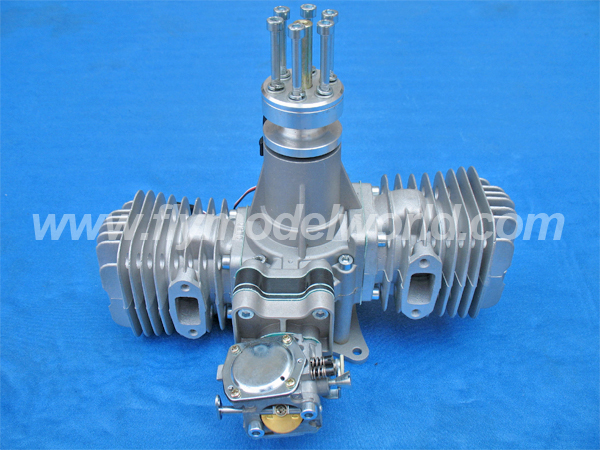

DL 100CC TWIN CYLINDER Gasoline Engine
100cc SPECIFICATIONS:
Performance...
Output Power: 10.2HP at 7500rpm
Idle Speed: 1400 rpm
Static Thrust: 52.9lbs at 100 meters altitude
45.6lbs at 1800 meters
Dimensions...
Displacement: 101.6cc
Bore and Stroke: 43mm×35mmX2
Compression Ratio: 7.5:1
Weight: 2950 grams / 6.5lbs.
Cap to cap width: 29cm / 11.4in.
Mount to prop hub length: 167mm / 6.6in.
Centerline to carb: 13cm / 5.1in.
Requirements...
Fuel: 2C Regular Gas mixed 30:1 - 45:1 (petroleum based for break in,
synthetic thereafter)
Propeller: 27x10 benchmark; 26×10; 27x12; 28x10
Ignition Battery: 4.8 to 6.0 Volts >=2000Mah
Replacement Spark plug: NGK CM6 or equivalent
Gap: 0.018" to 0.020"
Installation torque: 7 to 8 ft-lbs.
Configuration...
2Cycle air cooled
Walbro membrane pump carburetor with manual choke
Automatic advancing electronic ignition

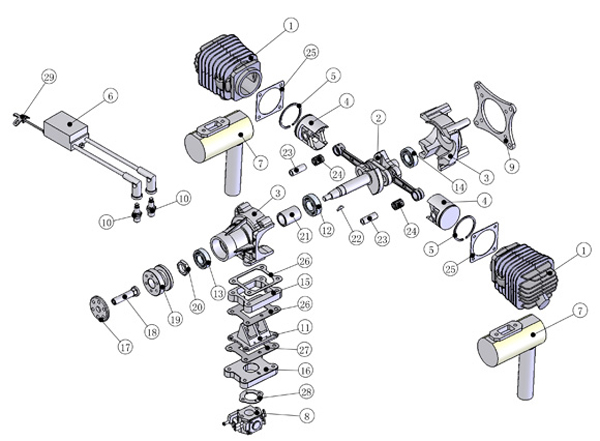

| Item | Description | Dwg Ref |
| 1 | CYLINDER | 1 |
| 2 | CRANKSHAFT ASSY | 2 |
| 3 | CRANKCASE SET | 3 |
| 4 | PISTON ASSY | 4,23,24， |
| 5 | PISTON RING | 5 |
| 6 | IGNITION MODULE | 6 |
| 7 | EXHAUST PIPE | 7 |
| 8 | CARBURETOR | 8 |
| 9 | ENGINE MOUNTS | 9 |
| 10 | SPARK PLUG | 10 |
| 11 | REED VALVE & INSULATOR | 11 |
| 12 | BEARINGS | 12、13、14 |
| 13 | SENSOR | 29 |
| 14 | GASKET SET | 25、26、27、28 |
| 15 | SCREW SET | |
| 16 | PROP HUB ASSY | 17、18、19、21 |
| 17 | WRIST PIN BEARING | 24 |
| 18 | Mounting Stand-offs | 15 |
| 19 | CARBURETOR MOUNTS | 16 |
