Tenshock Sensored brushless motor TS X812 6-Pol 2150KV 3500 Watt

€149.00

ΚΩΔΙΚΟΣ : ts-02035812/4.5Y

Σε Απόθεμα: Δεν υπάρχει απόθεμα

Περιγραφή

Tenshock X812
High end sensored brushless motor

for 1/8 On-&Offroad

Please select specification Lagerbestand

X-812/6: 2850 RPM/V; IO at 10V = 5,0A; Ri 3,2; Max: 18V; Max. 190A
X-812/7: 2450 RPM/V; IO at 10V = 4,5A; Ri 4,4; Max: 21V; Max. 160A
X-812/8: 2150 RPM/V; IO at 10V = 4,0A; Ri 5,6; Max: 24V; Max. 140A
X-812/9: 1900 RPM/V; IO at 10V = 3,6A; Ri 7,1; Max: 27V; Max. 120A

Features

CNC machined AL heat sink casing
High efficiency 6-Pole 18 Slots brushless motor
Superior rotor design with insert magnets
High purity copper windings making maximizes conductivity
Powerful sintered neodymium magnet
High torque and light weight
240 mm cable for more options
Dual-plug sensor for all sensored and sensorless system

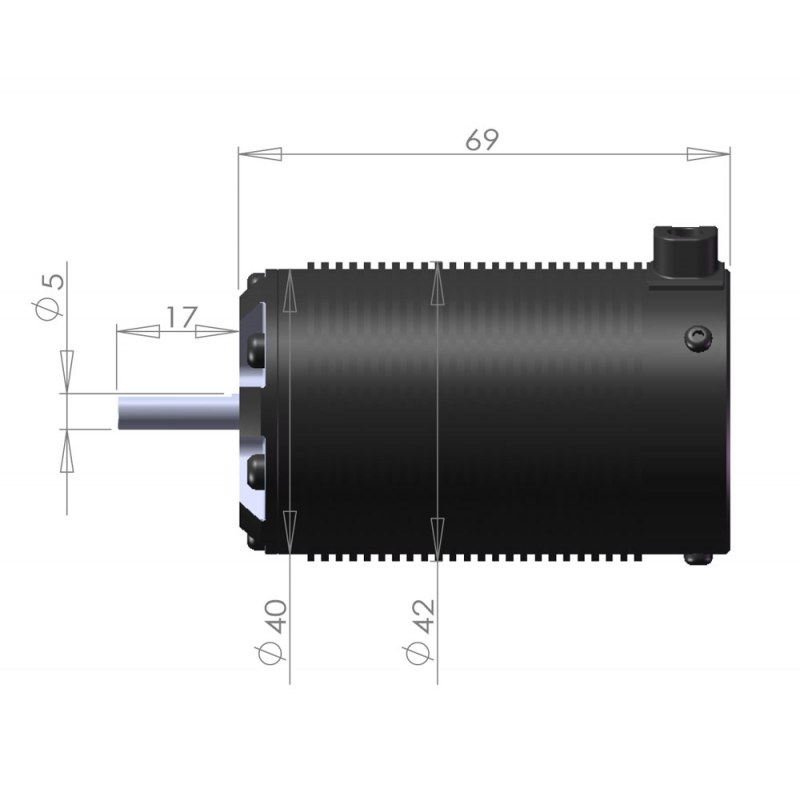

Details


Poles	6
Power	3500W
Length	69,0 mm
Ø cage	41,8 mm
Ø shaft	5,0 mm
eight	378,0 g

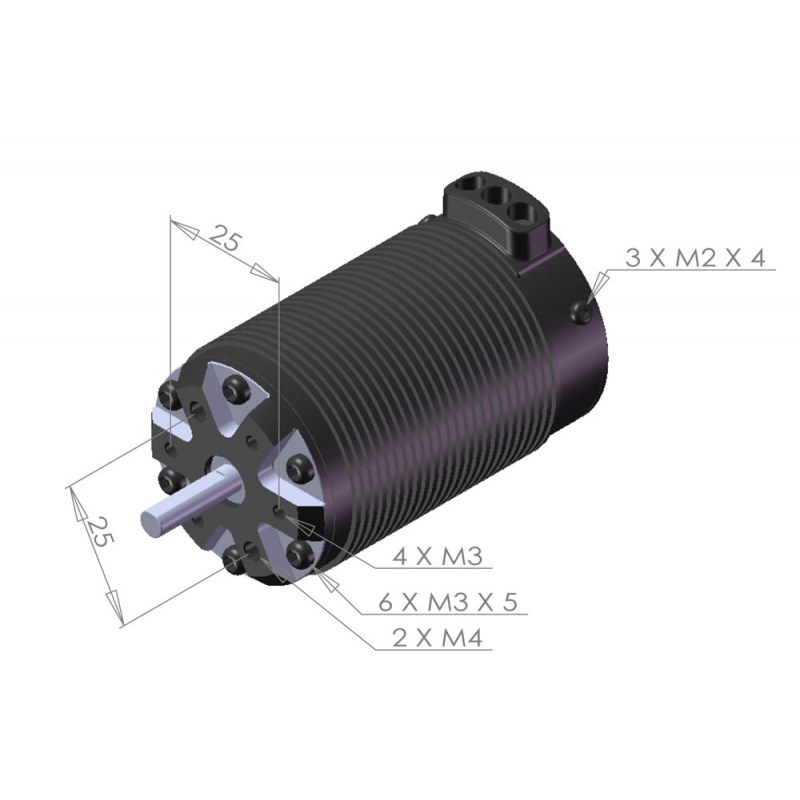

Skrews	4 x M3; 2 x M4
Hole pattern	25,0 mm
max. temperature of neodym	180 °C
Max. RPM	52.000
Recomende timing	10 - 15
