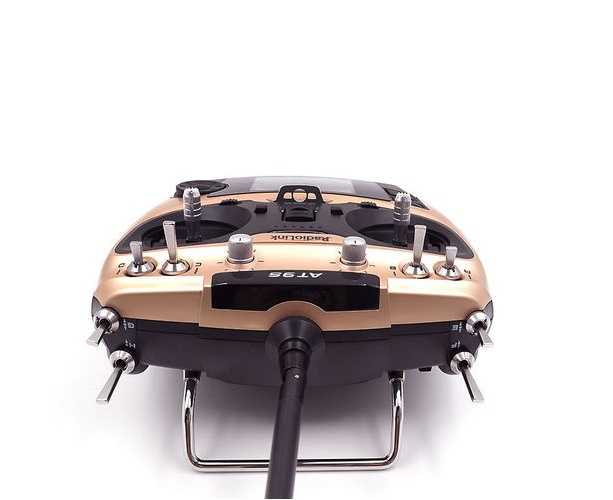

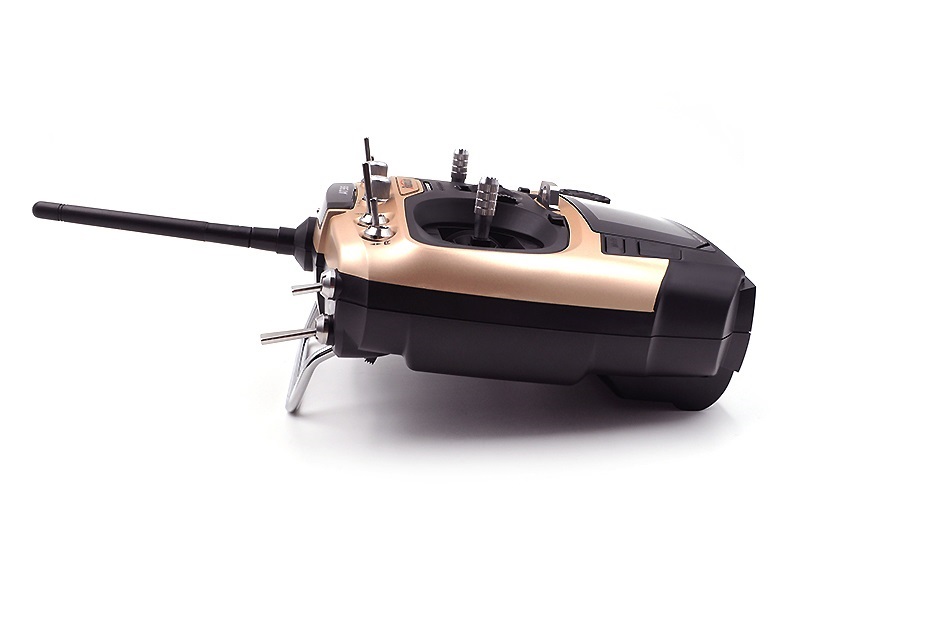

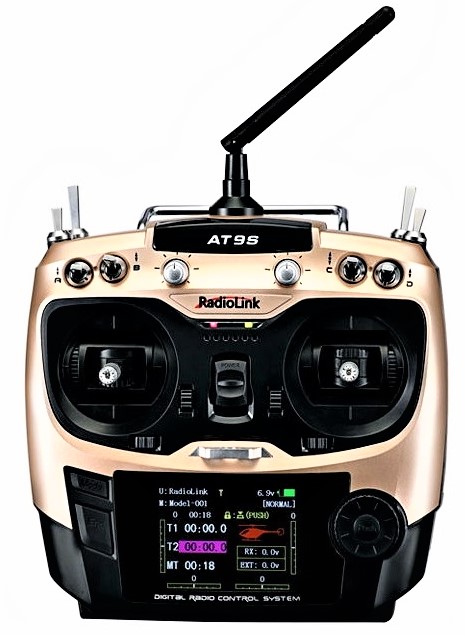

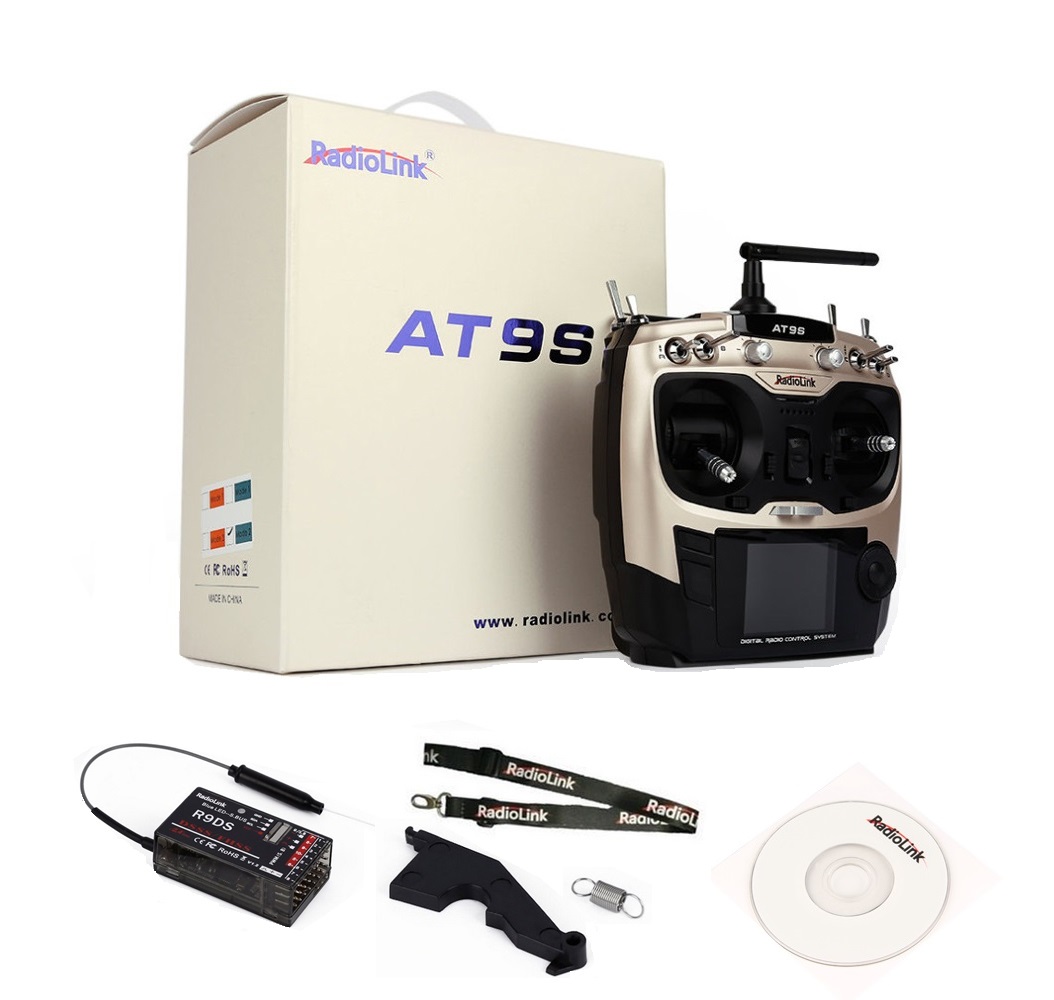

10-channel digital transmitter AT9S with R9DS receiver manufactured by RadioLink
90 mA operate current
3ms quick response
SBUS & PPM
DSSS & FHSS
USB online upgrade
The smallest RX
DSSS & FHSS Spread Spectrum DSSS & FHSS hybrid dual spread spectrum, 16 channels pseudo random frequency hopping, QPSK modulation ensure excellent anti-interference performance Even can controlled normally in city center Actual measurement: 900 meters ground and 3400 meters air
Real-time Data Telemetry Support signal strength, receiver voltage monitored, and extended engine voltage telemetry module PRM-01 and OSD info telemetry module PRM-02. PRM-02 can feedback GPS, SPEED, voltage etc.on AT9S display when work with flight controller APM or PIX
The Most Full Types And Functions Suit for all airplanes including helicopter 8 swash plate models, fixed wing 2 tails 3 airfoils, gliders 4 airfoils 2 tails, and multicopter, RC cars and boats

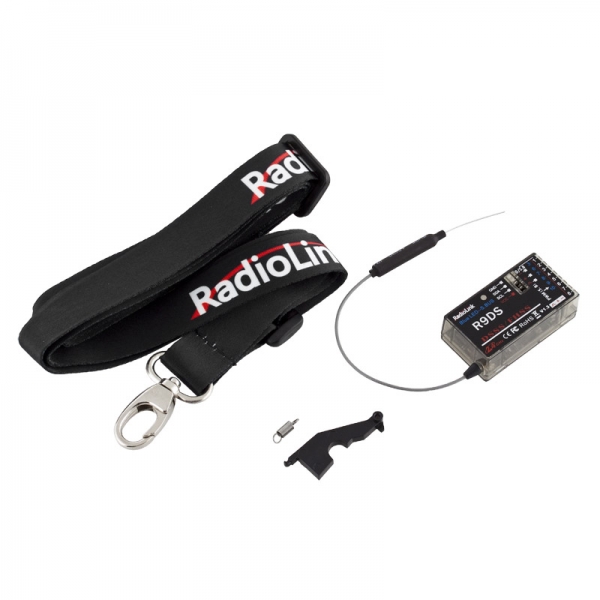

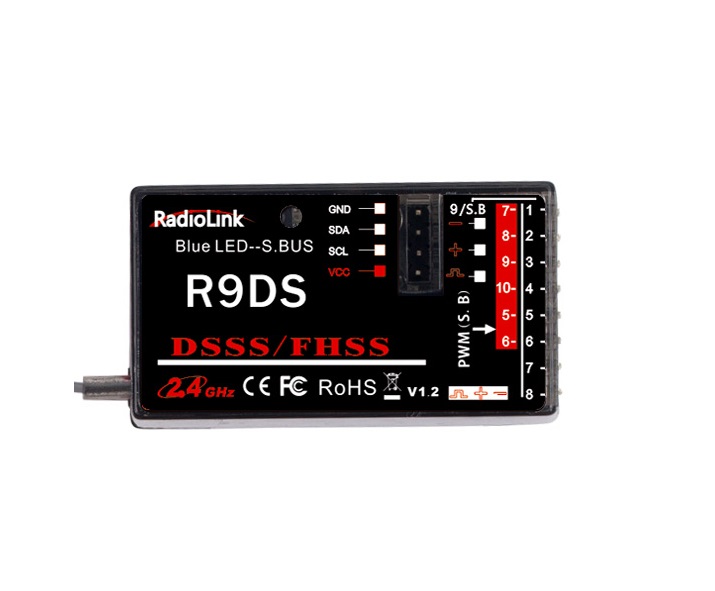

SBUS, PPM and PWM Support S-BUS, PPM and PWM signal possible working at the same time, AT9S sells with receiver R9DS,SBUS and PWM signal output simultaneous Also, compatible with diversity antenna receiver R12DS / R10DSS support SBUS and PWM signal output simultaneous Supper mini receiver R6DS, support SBUS, PPM and PWM signal output simultaneous!
Green and Low Consumption 90 mA operating current: Switching Mode Power Supply (SMPS) ensure the operating current keep to 90 mA when using 3S LiPo battery, a half or even one third consumption of the similar produts. With a 1800 mAh 3S LiPo battery can working more than 12 hours. PCB layout design of AT9S solve the interference of SMPS.
Anti-polarity Connect Protection Intelligent Do not worry about that damage your transmitter even connect anti-polarity all the time. Universal JST battery connector and wide input voltage range ensure multiple battery supprt: 8pcs AA batteries or 2S - 4S LiPo battery or other kinds of batteries.
4096 Precision 4096 section precision The max PWM signal jitter is 1.84 us and the regular jitter is 0.5 us, a quarter of AT9 and one-six of competing products, ensure servos anti-shaka rudder
Multi Alarm Prompt Low RSSI vibration alarm setting, low transmitter voltage, low receiver voltage and low extended engine voltage alarm. Vibration, DD sounds and words alarming avoid any ignorance in a noisy condition, ensure a safe flight.
Humanized Design Easy Setting Navigation menu offering next step, simplified the operating and setting.
USB Upgrade Upgrade by an USB cable helps AT9S always keeps the most advanced system and program. The USB data backup copy function of AT9S help you save and copy parameter setting easily.
Programmable MIX Control Basic menu, advance menu, graph view for varieties of throttle and servo curve 5-10 channels are customized Any advanced settings as you want
Humanized Switch Positioning Two knob switches, two slider switches, three 3-gear switches, four 2-gear switches, a reset trainer switch Support multiple aerial control mode and PTZ control. VR switches are galvanized and sub UV design
Size: - AT9S: 183x100x193 mm - R9DS: 41x23x14 mm
Weight: 880 g
Frequency: 2.4GHz ISM band (2400 to 2483.5 MHz)
Modulation mode: QPSK
Channel bandwidth: 5.0 MHz & 250 Kbps
Spread spectrum: DSSS & FHSS
Adjacent channel rejection: >38 dbm
Transmitter power: <100 mW (20dbm)
Operating current: 90 mA @ 12V
Operating voltage: 7.4~18.0 V
Control distance: more than 900 meters ground, 3400 meters air (the actual control distance depends on the flying environment)
Channel: 10 channels, 5-10 channels are customized
Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode

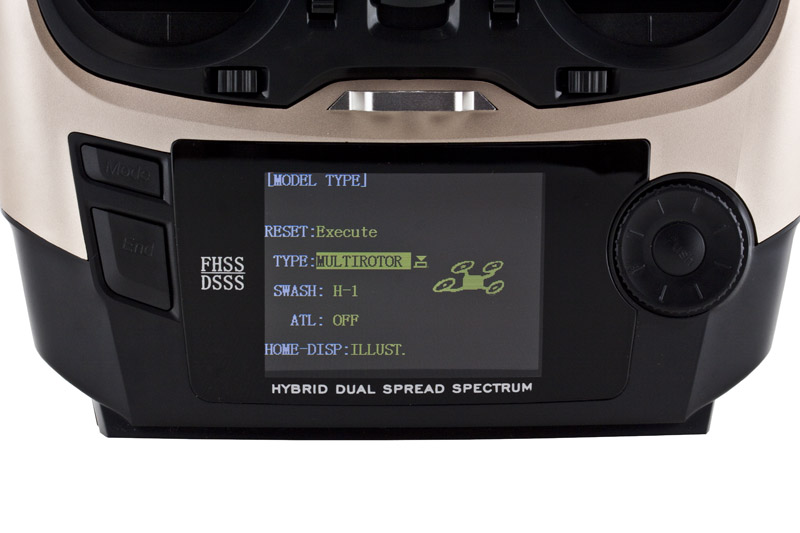

Screen: 2.8 inches 16 colorful screen, 240x320px
Support receivers: R9DS, R12DS, R10DS, R6DS, R6DSM
