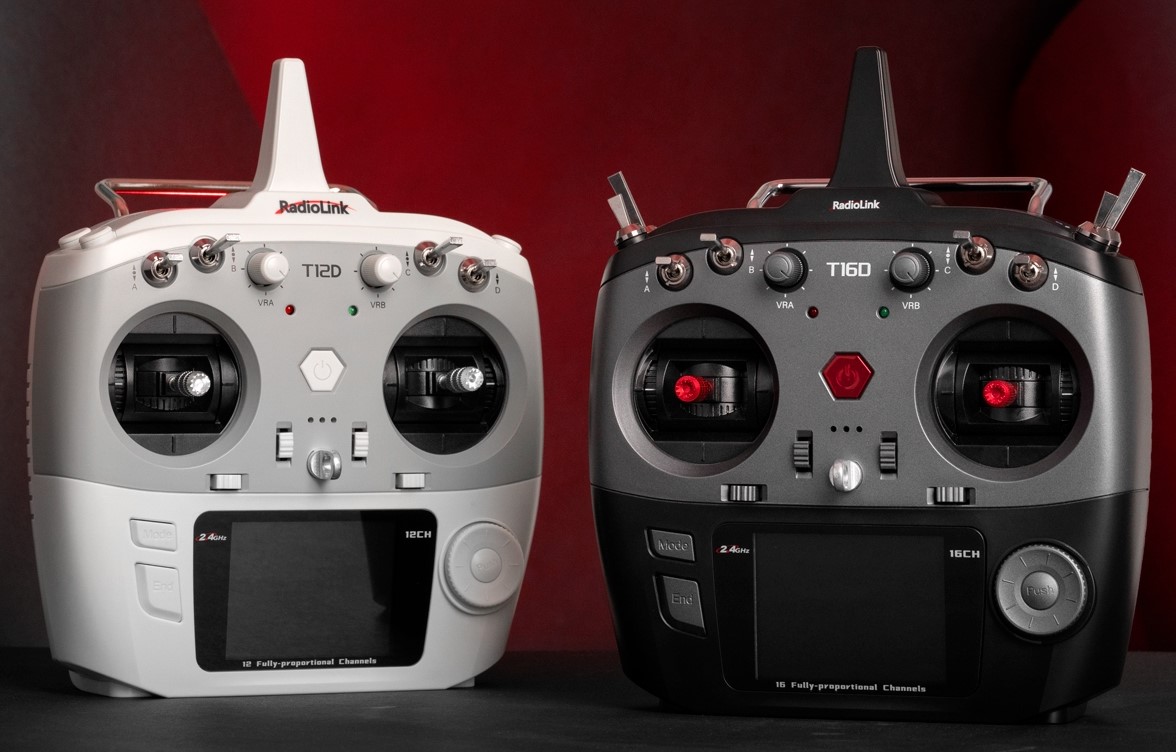

Radiolink T12D 12 Channels RC Transmitter and R12F Receiver

RadioLink T12D, with 12 fully-proportional channels, exceeds the current high-end twelve channels remote control which is only eight fully-proportional channels. Rich user-defined functions can satisfy almost all products from engineering vehicles, and robots, to turbojet aircraft.

T12D Key Features
freeRTOS & LVGL GUI System
Control Range Up to 2.5 miles
External Module (ELRS/Crossfire/BETAFPV)
50 Groups of Models Storage
16 Groups of Models Sub-ID Storage
100 Fishing Spots Storage
32 Set of Programmable Mixes Control
Wired/Wireless Training, RC Simulator Support
RC Model Options( Quad, Airplane, Glider, Helicopter, Car, etc.)

Cutting-edge Communication Technology

Mainstream Operating System

The mainstream embedded system freeRTOS system plus LVGL GUI user interface realizes a colorful and responsive user interface. Compared with the current CO system used in open-source high-end remote controls that have stopped updating, freeRTOS is more powerful and efficient. It can embody high-resource processors' effects on low-resource processors, achieving the perfect combination of performance and price.

Top Configuration

216MHz Basic Frequency Memory, 2.8 inches, 320*240 pixels 16 colorful screens. three 3-position switches, one 2-position switch, 2 pieces of dials, 2 pieces of sliders, and ergonomically designed making the T12D fit a wide range of pilot needs.

Supports ELRS, Crossfire, and Other Mainstream Long-range Modules

It fully supports ELRS, TBS Crossfire, and other mainstream long-range modules to realize most of the aircraft parameters such as protocol, baud rate, WIFI mode, etc. can be adjusted by the T12D. Realize the perfect combination of the humanized user interface of the remote control and the various functions of the open-source long-range modules.

Multiple Languages

The optional language menu includes Chinese, English, German, French, Russian, Japanese, Spanish, Korean, Thai and Polish, etc. Also, voice broadcasts can be customized in multiple languages. * More language versions are being added continuously.

Wide Compatible

T12D is packed with a 12-channel receiver R12F,
T12D is also compatible with the 16-channel receiver R16F,
the 8-channel receivers R8FG/R8FGH are designed for lawnmowers, bait boats,
the 8-channel receiver R8EF is designed for fixed-wing or helicopter,
the 8-channel receivers R8SM/R8FM/R8XM are designed for racing drone,
the 6-channel receivers R6FG/R6F and the 7-channel receiver R7FG designed for cars and boats,
4-channel mini receivers R4FGM designed for Mini RC cars.

Receiver Supports Upgrade Online

A 12-channel receiver R12F will come with the T12D. With a Type-C cable (for data transmission) connecting the R12F to the computer, the latest cutting-edge functions can be easily added without any extra device.

Built in emulator function

In addition to traditional simulators such as Phoenix, T12D also has built-in simulator functionality (requiring firmware upgrade to V1.7.1 version first), No need for an external encryption dongle, simply connect the Type-C cable to the computer to support it Open source simulators such as TRYP FPV, AeroFly, Uncrushed, liftoff, FPV LOGIC, Velocidrone, etc, Both Apple computers and Windows system computers can be used.

Excellent Anti-interference Capability

Excellent anti-interference performance, highly constant, and stable transmission signal present on all 12 channels of T12D. Hundreds of users can compete at the same time without interference, far exceeding the industry's maximum limit of eight units at the same time. Help T12D users participate in large-scale events such as the International University Student Electronics Design/Engineering Competition, or racing drone competitions.

Full Models with Full Functions

T12D, the 12 fully proportional channels with full models and full functions transmitters, support helicopters, fixed-wings, gliders, multi-rotors, racing drones, football drones, engineering vehicles, racing boats, robots, lawnmowers, bait boats, mechas, and other models on the market.

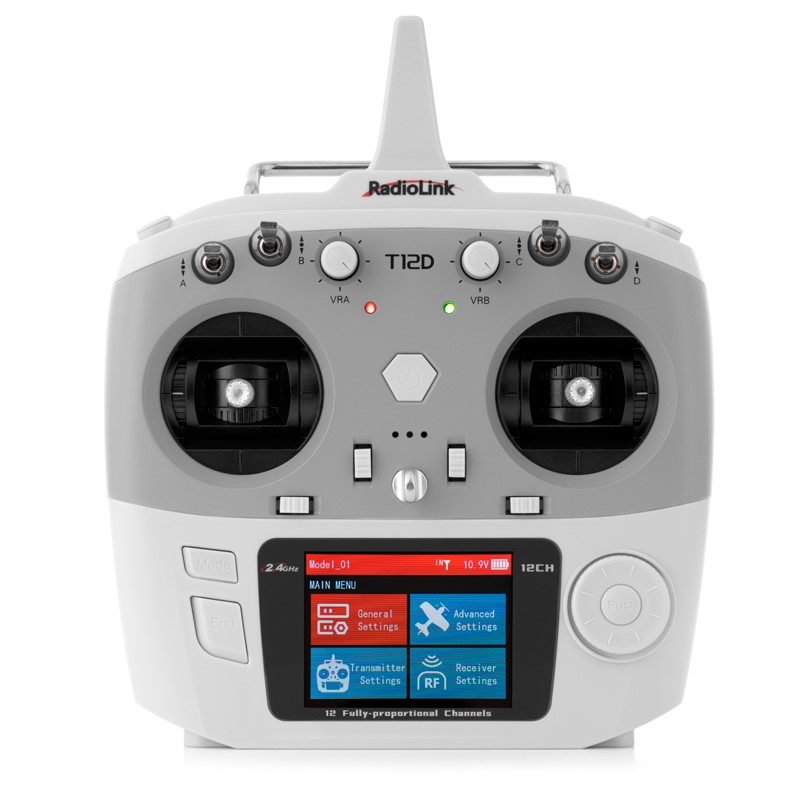

Navigation Reminder Parameter Setting Menu Humanized and Easy to Operate

The new navigation user reminder parameters setting menu is powerful and extremely easy to use. The transmitter can be used quickly without an instruction manual. It is more user-friendly than AT9S.

Programmable Mix Control Cascade Function

All 12 channels can be programmed to any advanced setting*. Multiple mixing controls can be cascaded infinitely to achieve one switch controlling any number of channels. The T12D is the perfect choice whether for daily training equipment or use to compete with the world's top pilots.

Output RSSI Value From Receiver To FPV Monitor

Real-time RSSI Telemetry When Racing

Reverse Polarity Protection Circuit Multiple Power Supply Modes

T12D is easily adapted for various battery layouts with wide operating voltage tolerance: 8 pieces of AA batteries, a 2S-4S LiPo or 18650 Lithium battery, or powered by a computer or mobile power bank connected via Type-C cable. Universal JST connector with the voltage protection software of Radiolink ensures vital components are protected from a reverse polarity connection.

Package:

1. Aparatura Radiolink T12D
2. Odbiornik R12F
3. USB C cable
4. Hook & spring
5. Manual

Specifications:

Twelve-channel RC kit 2.4GHz FHSS with gimbals, 4 switches, 4 rotary encoders. 50 model memory, mixes acro, gliders, heli/copters, cars, boats, tanks; up to 3 flight modes, assignable controllers and switches, on-screen telemetry. Possibility to connect an external RF module with CRSF protocol. R12F receiver without telemetry.

The T12D is a 12-channel computer transmitter for recreational modellers, allowing the setting of basic functions such as deflection rates and direction. It also features a wide range of mixes for controlling a wide variety of models, including motorised aerobatic models, gliders, multicopters, cars, other ground vehicles and boats. It can work with an internal RF module with FHSS transmission system (same as T8FB/T8S or RadioLink R4GS/R6GS/R8X pistol transmitters), but also allows connection of external ELRS or TBS Crossfire long-range RF modules. It features a practical case that fits perfectly in the hand with a classic, time-tested ergonomic layout of controls.

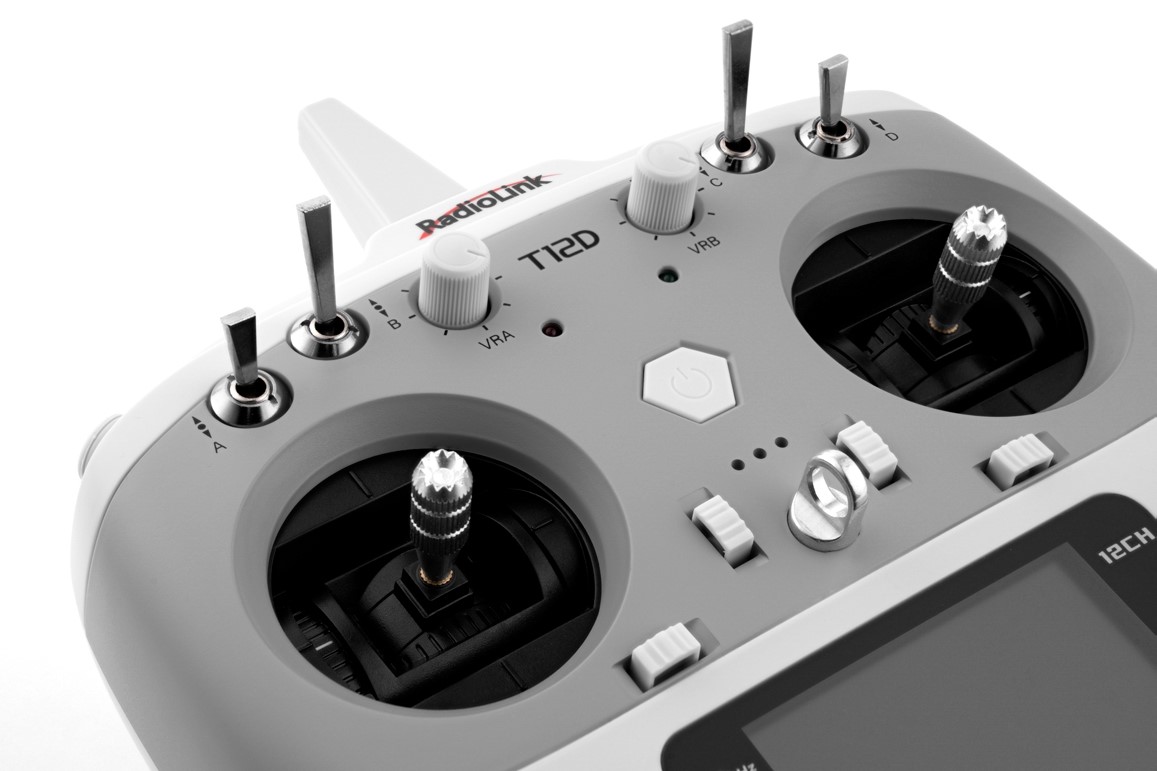

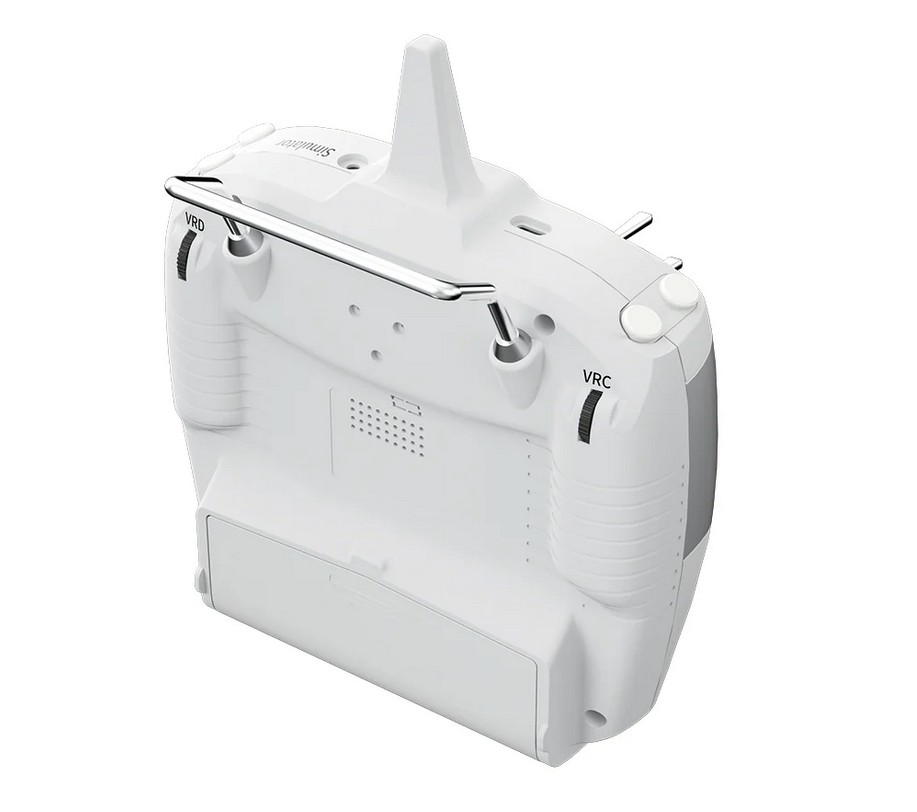

Controls: The main functions are controlled by precise gimbals with adjustable self-centring spring tension and the option of moving the ratcheted throttle axis to the left or right. This allows you to freely select the mode 1–4 of the gimbals. The digital trims have audio signals for stepping and centre position. They are positioned slightly off-centre and are easy to reach. Additional channels can be controlled by two rotary knobs on the front panel and two rotary controllers with self-centring on the rear of the transmitter; four switches (three 3-position and five 2-position) can be used as channel switches or to turn program functions on/off. For easy programming, there are two buttons and a programming wheel/button and a 2.8-inch colour LCD with a resolution of 320×240 pixels. The transmitter uses the FreeRTOS operating system.

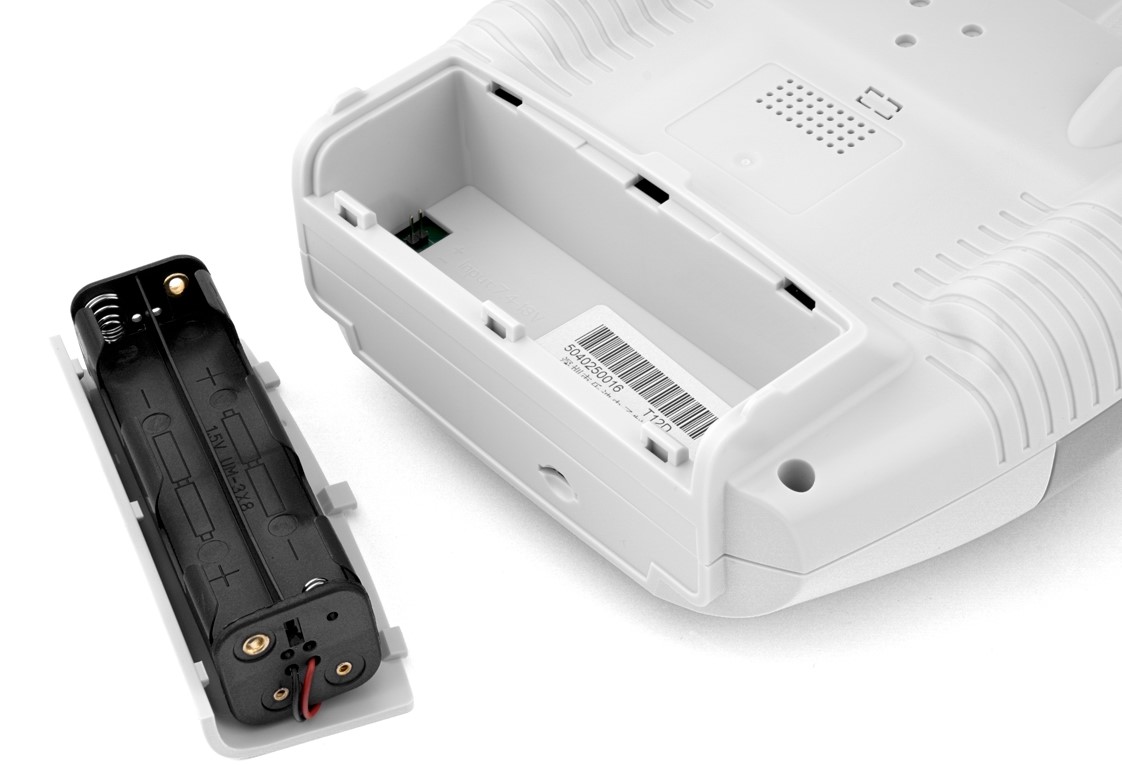

Transmitter power supply: The T12D can be powered by a variety of sources: 8 AA alkaline batteries or NiMH rechargeable batteries inserted into the holder supplied with the transmitter, NiMH rechargeable battery packs with 8 cells (AA size) or 2–4S LiPo or Li-ion battery packs. Power can also be supplied from a power bank via a USB-C port.

Transmission system: The T12D uses FHSS transmission with frequency hopping to ensure long range, reliability, and excellent anti-interference performance. For the internal RF module, you can choose between three FHSS transmission protocols with different transmission speeds (14 ms for analogue servos, 4 or 3 ms for digital servos), depending on the type of RadioLink receiver and servos used. When using a telemetry receiver, it allows telemetry transmission from the receiver and also telemetry from a connected RadioLink flight control unit, if used. For working with external modules, bidirectional ELRS and CRSF V2 protocols are available.

Software: The T12D offers programs for eight model types - classic aircraft, flying wings/deltas, multicopters, helicopters, cars, boats, tracked vehicles/tanks, and robots, with the option of cooperation with RadioLink control units for aircraft, drones, vehicles, or even fishing boats, including the relevant telemetry.

Memory for 50 models with the option to copy and rename models

System settings (brightness, contrast and display backlight, menu language, etc.)

Selectable gimbal mode 1–4

Servo monitor

Reversing of deflection directions

Setting the rates (end points) of deflections

Servo speed

Free assignment of functions and controls for channels 5–16

8 freely programmable mixes with selectable progression: linear, exponential, broken curve, 9-point curve

Switchable control unit mode (up to 17 modes)

3 flight modes

Dual rates and selectable deflection progression (exponential, broken curve, 9-point curve) for channels 1, 2, and 4

Throttle curve (up to 9 points)

Throttle preset (engine shutdown for aeroplanes, autorotation for helicopters)

Mix for butterfly tail surfaces

Mix for flying wings/deltas

Mix for remote gyro gain control (for RadioLink receivers with built-in gyro)

Collective pitch curve for helicopters

Mixes for helicopters (swashplate)

Mix for tracked vehicles

Bait boat control (only with R16F receiver and RadioLink control unit with GPS,) allowing you to set a route of up to 100 points

Auxiliary ID: Allows you to control multiple models with receivers paired with the transmitter without switching model memories (e.g., you can drive out with a tow truck with a loaded excavator; once you arrive at the construction site, flip the switch to activate the auxiliary ID and you will now control the excavator)

2 timers

Switch assignment

USB-C port for transmitter firmware updates or RC simulator control on a PC (from version V1.7.1)

Trainer socket for wired connection of 2 RadioLink transmitters

Compatible receivers: RadioLink R12F, R16F, R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R6FGM, R4F.

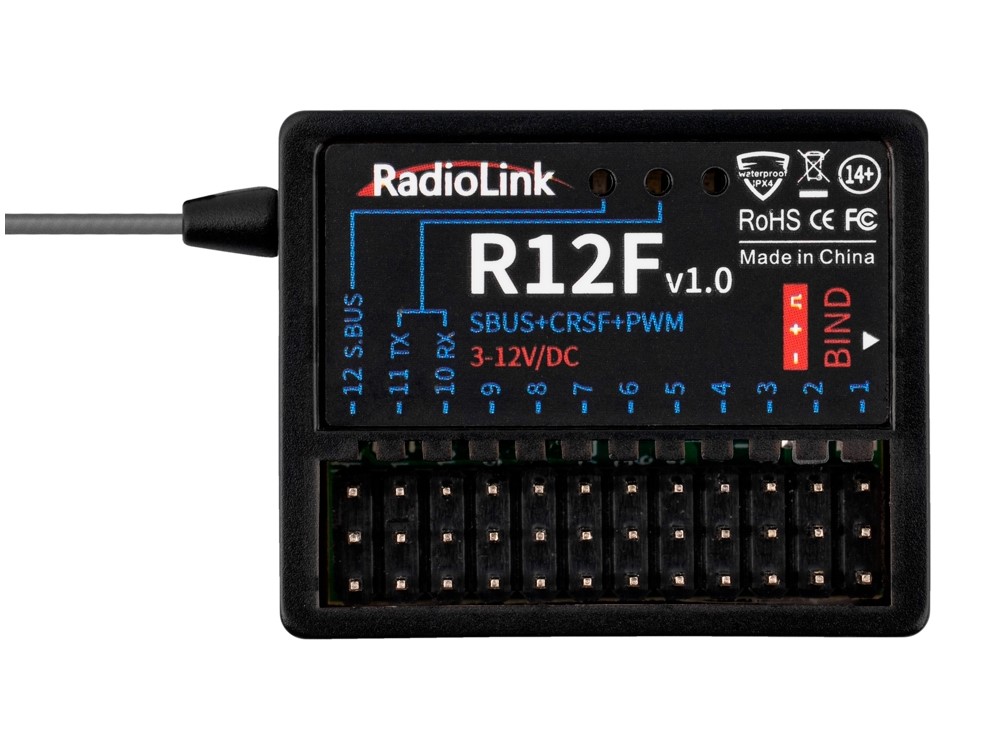

The R12F receiver supplied in the kit allows you to select several channel output modes (12 PWM outputs for classic servos, 11xPWM + S.BUS, 9xPWM+S. BUS+RX/TX CRSF, 10xPWM + RX/TX CRSF) with combinations of PWM outputs for classic servos, S.BUS serial output and input/output for CRSF. This allows you to easily connect classic servos, S.BUS servos and other devices, control units, etc.

Telemetry:

When using the internal FHSS RF module and RadioLink telemetry receivers, information about the receiver's supply voltage and RSSI signal strength is available; with the R16F receiver, it is also possible to measure and display the voltage of, for example, a drive battery up to 6S LiPo on the transmitter. You can also set threshold levels for low signal or low voltage alerts. When using a RadioLink control unit, telemetry data from this unit can be displayed.

When using an external RF module with CRSF protocol and an appropriate receiver, telemetry from this receiver can be displayed.

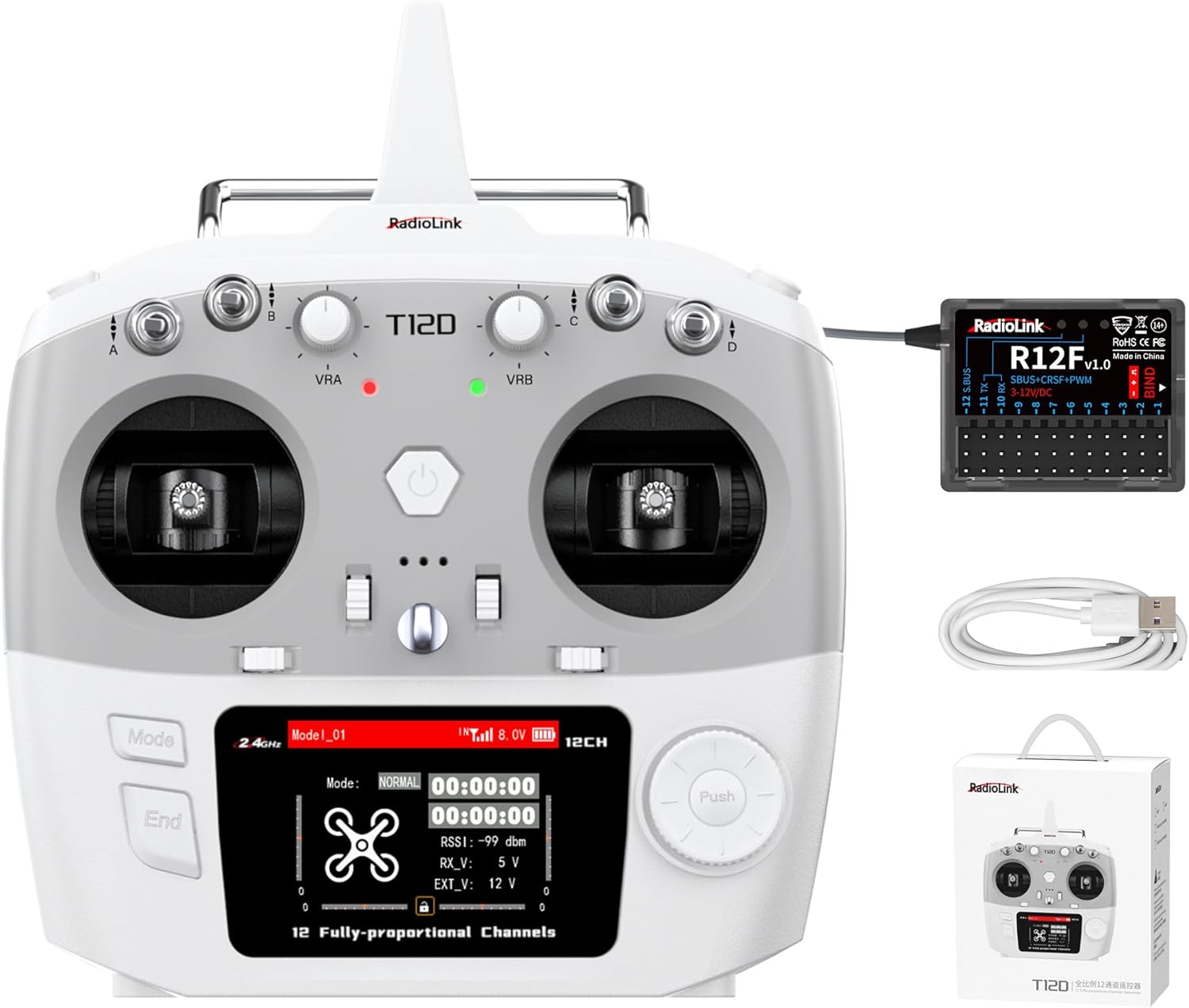

The T12D RC set includes:

T12D transmitter

R12F receiver (telemetric)

USB-C cable

Gimbal self-centring lever and spring

User manual
