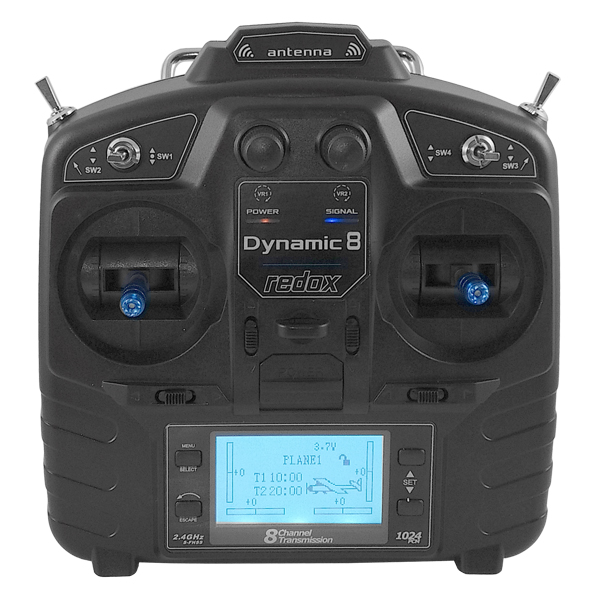

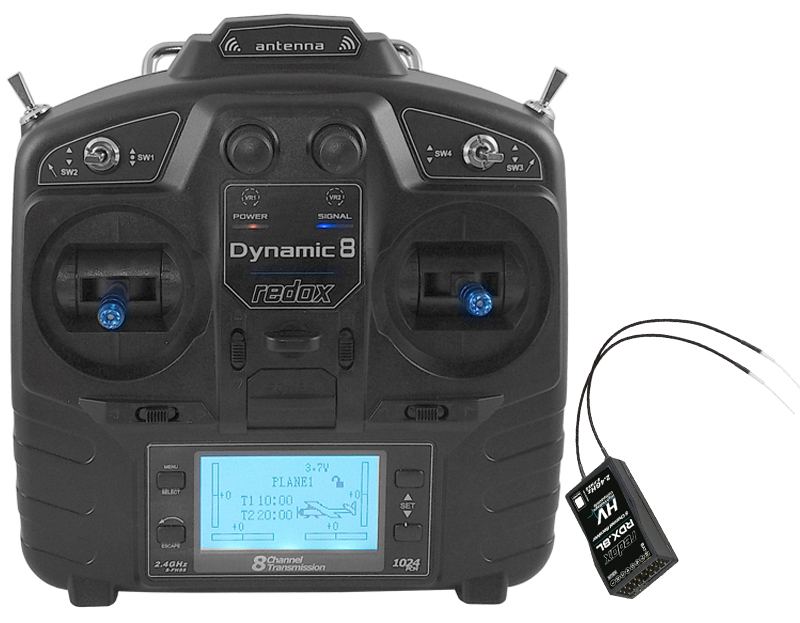

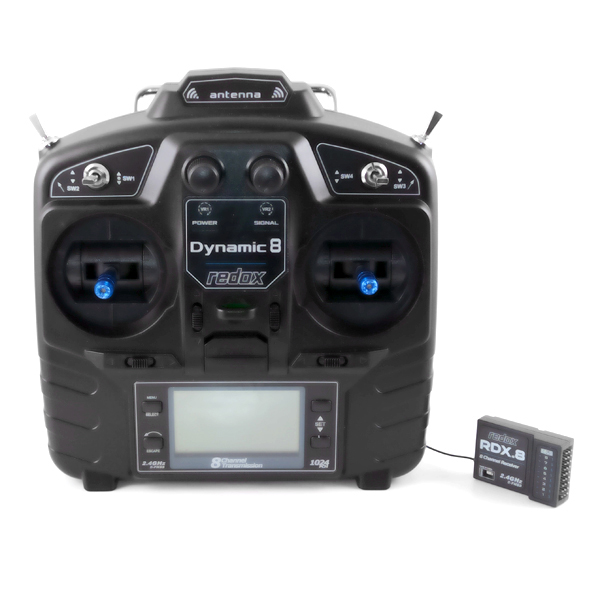

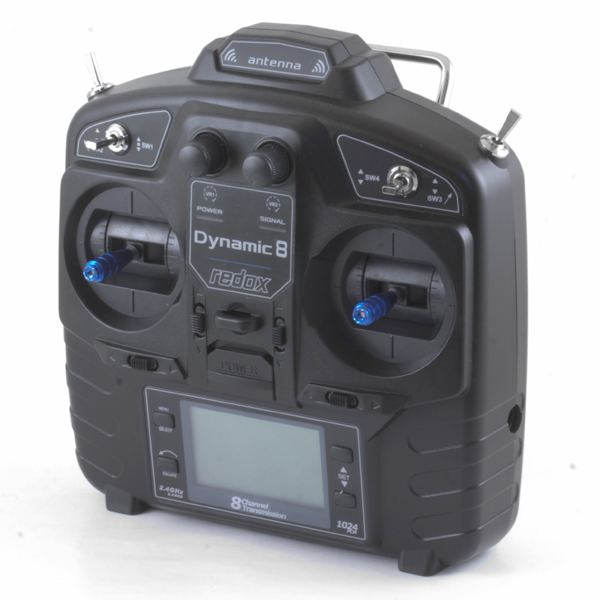

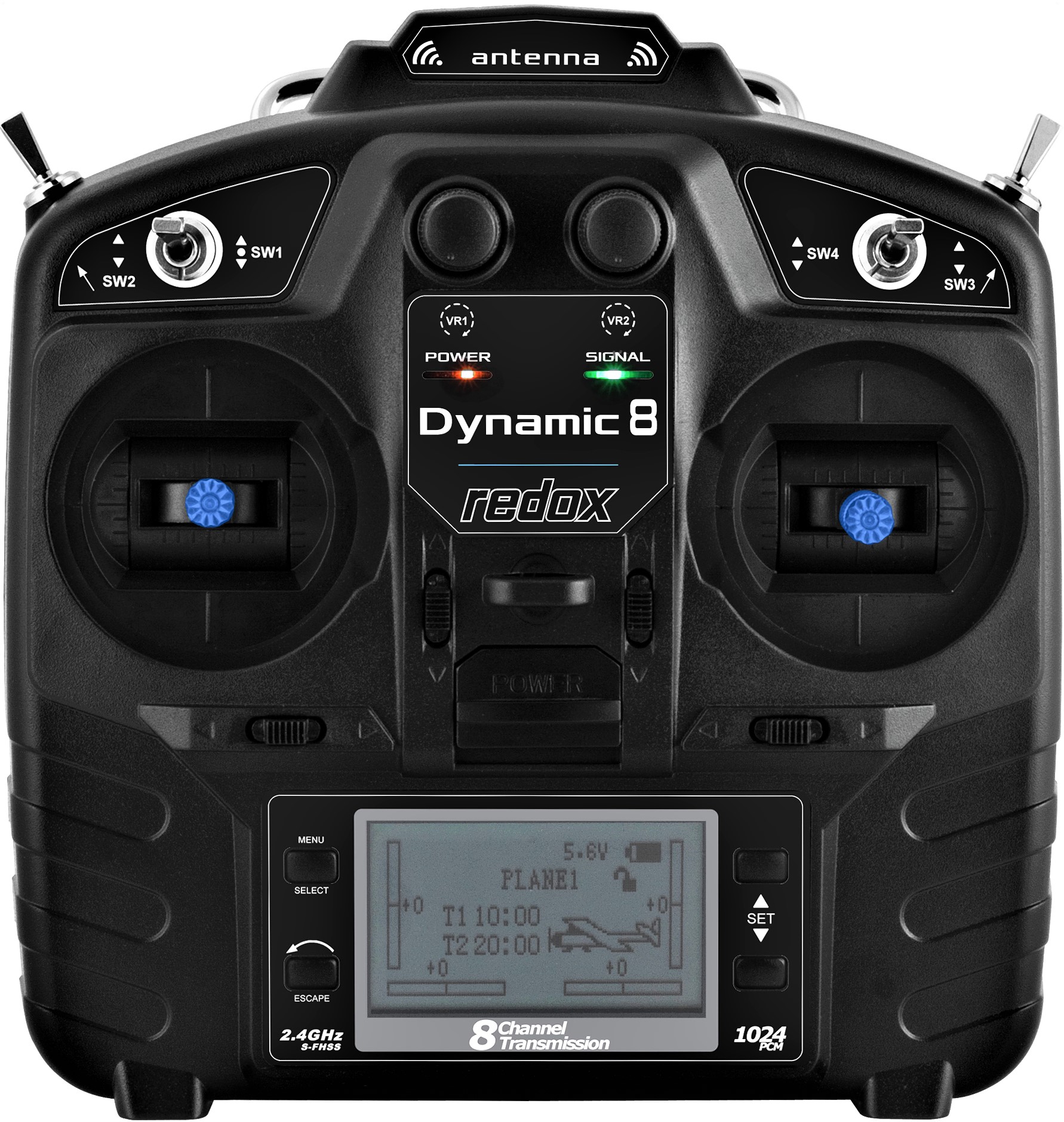

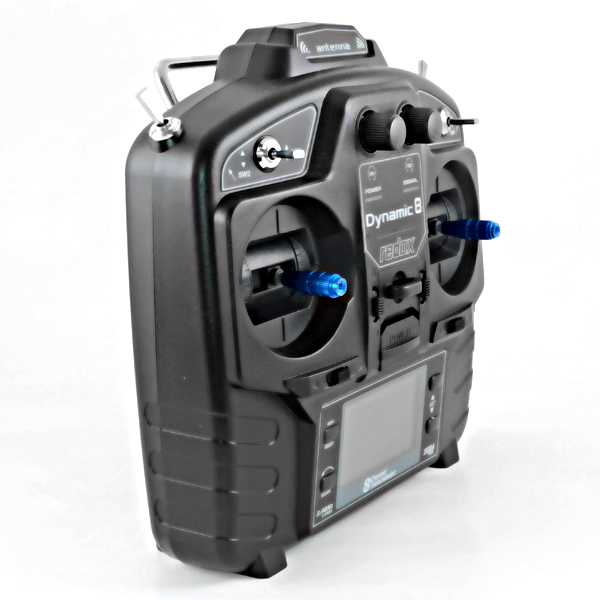

Redox DYNAMIC 8 is a universal, 8-channel digital modeling transmitter, offered in a set with a compatible Redox RDX.8 receiver.

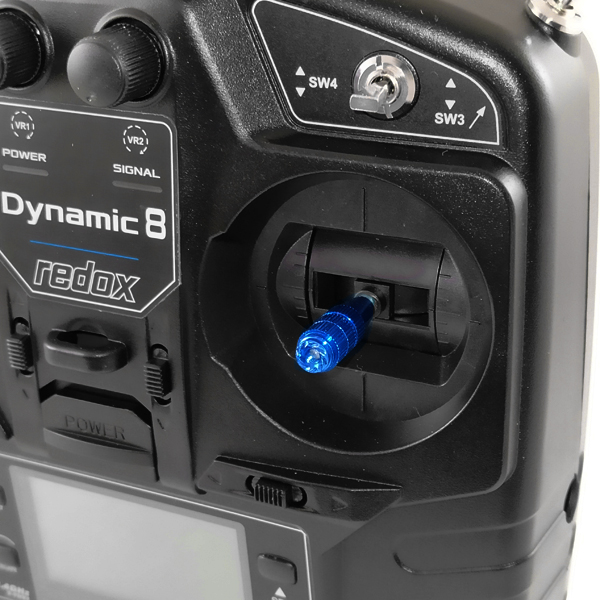

The transmitter has 6 proportional functions (sticks + 2 potentiometers) plus 4 additional switches (3 two-position and 1 three-position).

The rod system of the Dynamic 8 apparatus classifies it primarily as a transmitter intended for operating flying models (airplanes, helicopters, drones), however, the apparatus can also be successfully used for models moving on the water (boats, motorboats, yachts) and on paved surfaces ( cars).

The transmission range of the transmitter signal, depending on the receiver used, may be from about 800 to 1500 meters (in optimal conditions and undisturbed working environment).

Characteristics of the Redox Dynamic 8 transmitter:

Number of channels: 8x PWM + 1x SBUS

Supported model types: Airplanes, UAVs, Helicopters, Cars, Boats

Frequency / Modulation: 2.4 GHz S-FHSS, FSK

Resolution: (1024 p.)

Working voltage: 4.8 - 6 V

Current consumption (own): ~ 150 mA

Weight: 460 g (approx. 553 g with batteries)

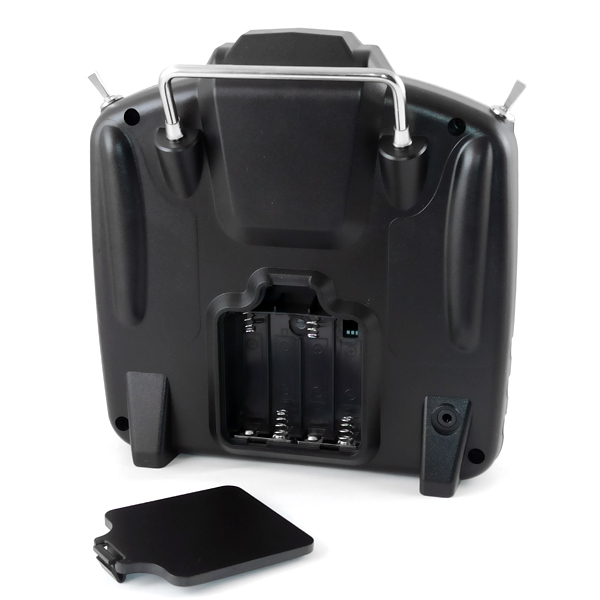

Power supply: 4x AA NiMH rechargeable battery or 4x LR6 alkaline batteries

Low voltage alarm: Yes

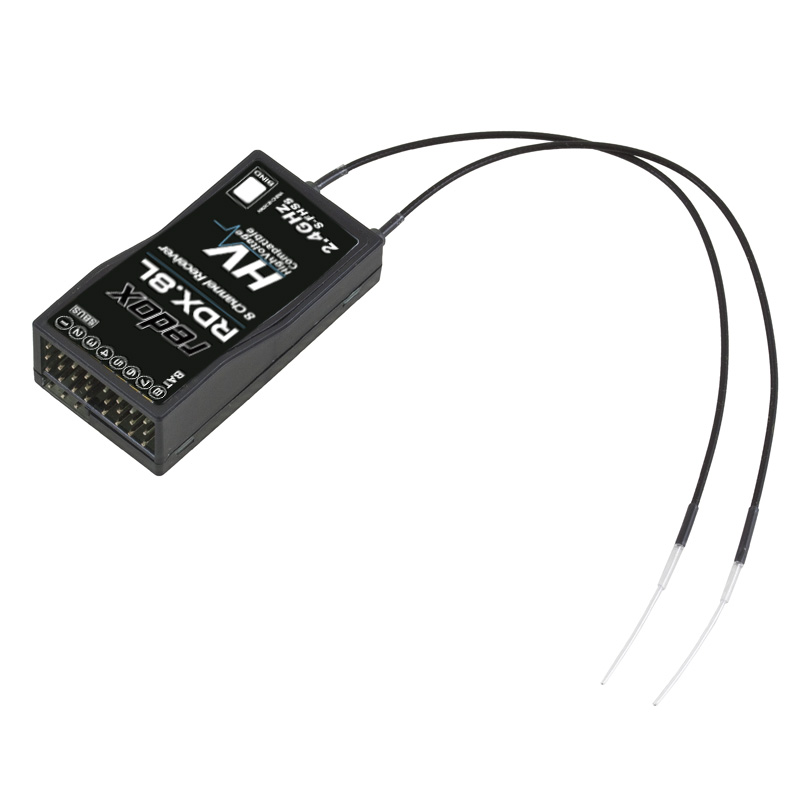

Receiver included:

Redox RDX. 8

Number of channels: 8x PWM + 1x SBUS

Frequency / Modulation: 2.4 GHz S-FHSS, FSK

Working voltage: 3.5 - 7.4 V (max. 2s LiPo)

Compatible with HV servos: Yes

Weight: 12 g

Sizes: 42 x 28 x 12 mm

Antenna length: 150 mm
