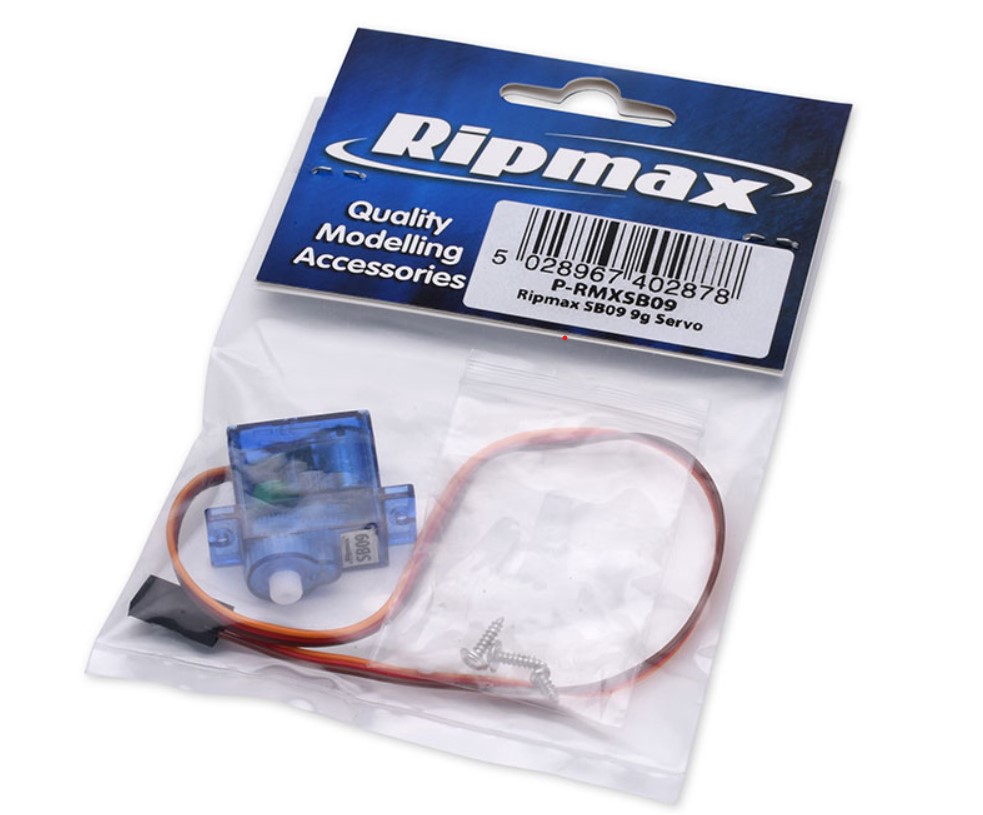

Ripmax SB09 Mini 9g Servo (0.10sec/1.6kg)
The SB09 is a basic 9g micro servo, that is ideal for a wide variety of small electric model applications.
With up to 1.6kg/cm of torque available, there's no lack of performance either!
| Specifications | |
|---|---|
| Case Centre | Translucent Plastic |
| Main Case | Translucent Plastic |
| Operating Frequency | 1520µs, 50hz |
| Weight | 9g |
| Bearings | Plastic |
| Gear Type | Nylon |
| Speed | 0.10 sec/60 deg @ 6.0V |
| Speed | 0.12 sec/60 deg @ 4.8V |
| Torque | 1.2kg/cm @ 4.8V |
| Torque | 1.6kg/cm @ 6.0V |
| Voltage | 4.8 - 6.0V |
| Dimensions | 32 x 12 x 36.5mm |
| Electric Motor | Brushed |
